Product Details

Product Description

Working Voltage: AC85V-260V

( AC85V AC100V AC110V AC120V AC220V AC230V AC240V AC260V all is ok )

Working Frequency: 315MHZ or 433MHZ Optional

Quiescent Current: less than 10mA

Working Temperature: -10’c-+60’C

Receiving sensitivity :-105dBm

Working Distance: 10-100m

Modulation Mode:Superheterodyne

Max Load : 10A Relay have 10A Relay, Resistive load≤5A,Inductive load≤3A

Matching Mothod: Learning Button to add transmitter

Working Mode: Momentary /Toggle /Latched /Momentary delay off 5s/10s/15s

Board Size:55mm*32mm*17mm

Case Size: 73mm*36mm*23mm



L——Input AC85V-260V Live Wire (L)

N—–Input AC85V-260V Neutral Wire (N)


L——Ouput AC85V-260V Live Wire (L)

N—–Output AC85V-260V Neutral Wire (N)

Momentary—– Press and Hold—ON, Release—-OFF

Toggle——-Press one time —-ON. Press it again —-OFF

Latched——–Press A —-ON, Press B—–OFF

Momentary 5s/10s/15s ———Press and Hold—ON, Release 5s/10s/15s Delay —–OFF

Learning Code

Input AC85V-260V for Receiver to work ,

Momentary—–Press the learning button for 1 Time, LED indicator ON, then Press the transmitter. LED indicator flash

Toggle———–Press the learning button for 2 Time, LED indicator ON, then Press the transmitter. LED indicator flash

Latched———Press the learning button for 3 Time, LED indicator ON, then Press the transmitter. LED indicator flash

Momentary 5s/10s/15s time Delay OFF——

Press the learning button for 4/5/6 Time, LED indicator ON, then Press the transmitter. LED indicator flash

Clearing Code

Input AC85V-260V for Receiver to work ,press the learning button for 8 times, LED indicator flash for 6 times, code have cleared.

(Note: if you need change working mode, turn off the power ,and turn on again to clear the code and re-learn again)

Black or White Case Optional

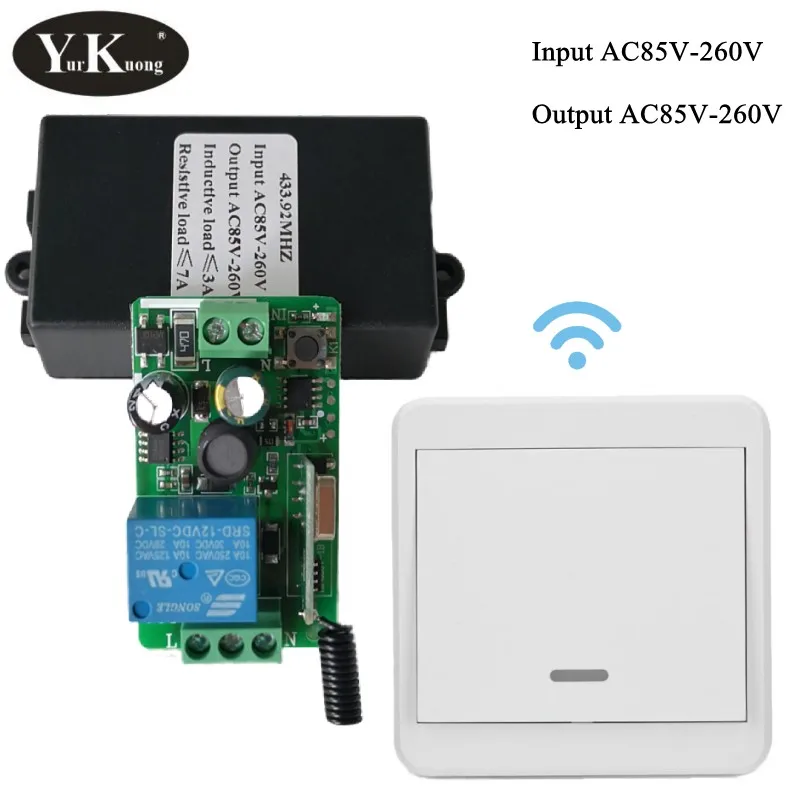

Input AC85V-260V Output AC85V-260V

Buy what you need

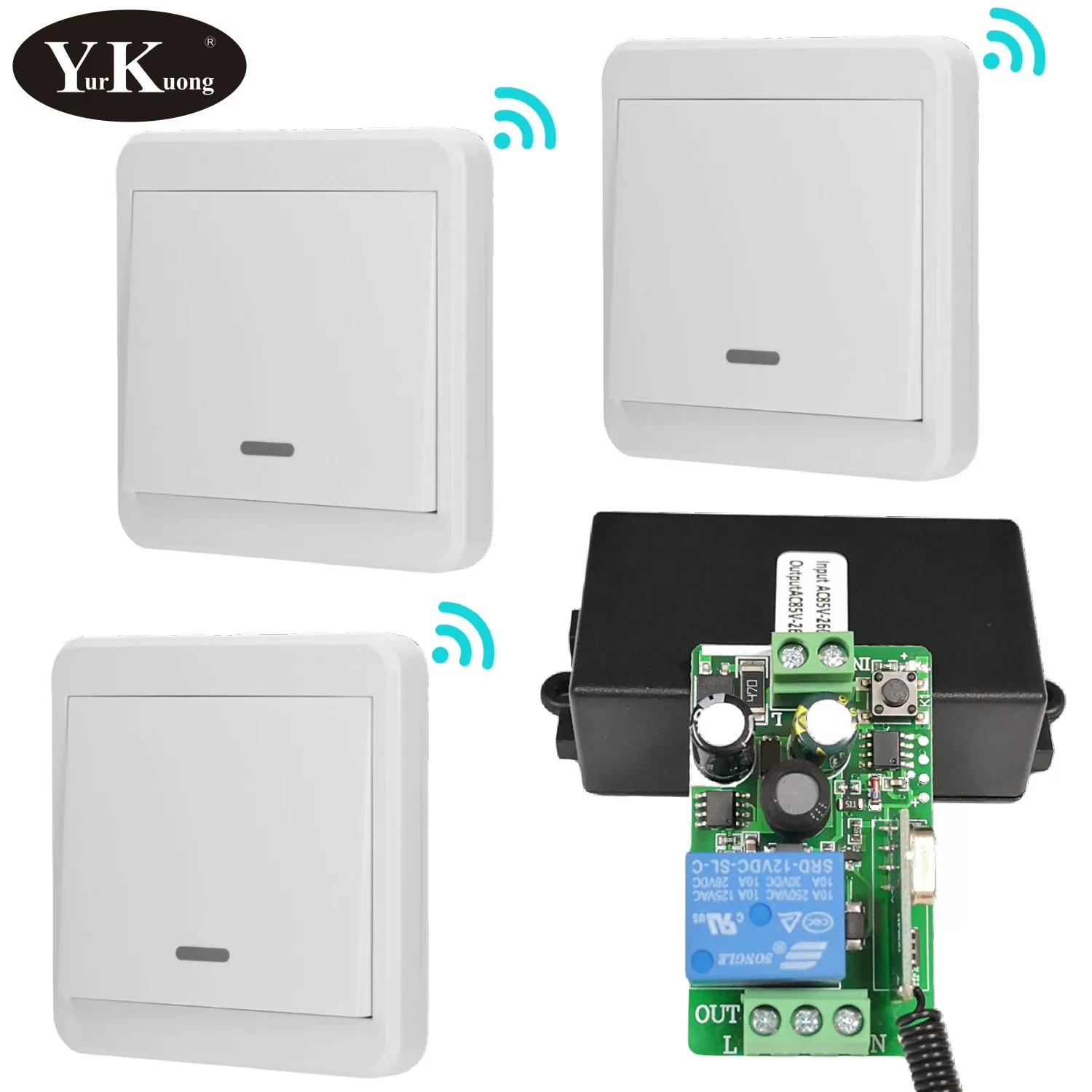

1 Receiver work with Multiple Remote Control
Multiple Receiver work with 1 Remote Control
